Duty Share Control

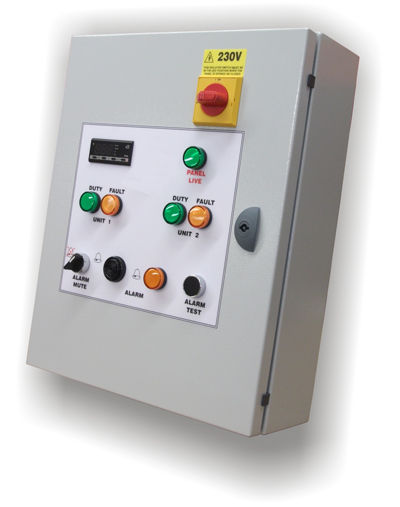

Our duty share control panels are designed to meet your requirements controlling up to six air conditioning units in any configuration. We can also incorporate an auto dialler which will send you a message on unit fault.

Features

  • Door interlocking isolator
  • Indication for Panel Live, Alarm, Fire Alarm Operated and
  • individual Duty and Fault indicators for each unit
  • Fire alarm contacts for shutdown in fire situation
  • Volt free common fault output
  • Change over on unit fault
  • Duty share every 100 hours
  • Digital thermostat to show room temperature
  • Audible alarm for unit fault and high temperature, with mute
    switch

Connections

  • Indoor unit x 2
  • Fire alarm circuit
  • Room sensor
  • Volt free fault contacts

Loose Supply Items

  • Room sensor

Ratings:
Required supply: 2Amps 230V 50Hz
Enclosure Details:
Dimensions: 300(w) x 400(h) x 150(d)mm
Finish: RAL 7035 textured
Cable entry: Top
Weatherproof: No

Installation Instructions
The control panel is designed for wall mounting in a clean, dry environment where the ambient temperature does not exceed 30°C.

A space approximately 50mm should be left around the enclosure to allow for heat dissipation.

Fix the enclosure to the wall using proprietary fixings. Remove the gland plate then drill and gland for necessary cable entry and exits.

Replace the gland plate and wire panel in accordance with the wiring diagram.

All wiring must comply with current regulations and be in compliance with the Health and Safety at Work Act.
